DIYCool Single Zone Mini Splits

DIYCool Single Zone Standard Mini Splits

SPECS:

Model #:EZ-9Z-HP115B / EZ-9W-HP115B
Tonnage: .75 Ton
SEER2: 20.2
Cooling capacity: 12,000
Heating capacity: 12,000
Standard Operating Temp: -13 ~ 122
Outdoor Unit (WxDxH): 28.35 x 10.63 x 19.49
Indoor Unit (WxDxH): 28.70 x 7.87 x 11.50
Electrical: 115v/ 1Ph / 60Hz
Sound Level: 22 dBa
Refrigerant: R454B
Warranty: 2-year parts and 1-year compressor (when registered)

SPECS:

Model #:EZ-12Z-HP115B / EZ-12W-HP115B
Tonnage: 1 Ton
SEER2: 19.5
Cooling capacity: 12,000
Heating capacity: 12,000
Standard Operating Temp: -13 ~ 122
Outdoor Unit (WxDxH): 28.35 x 10.63 x 19.49
Indoor Unit (WxDxH): 31.57 x 7.87 x 11.61
Electrical: 115v/ 1Ph / 60Hz
Sound Level: 25.5 dBa
Refrigerant: R454B
Warranty: 2-year parts and 1-year compressor (when registered

SPECS:

Model #:EZ-18Z-HP230B / EZ-18W-HP230B
Tonnage: 1.5 Ton
SEER2: 20
Cooling capacity: 17,000
Heating capacity: 18,000
Standard Operating Temp: -13 ~ 122
Outdoor Unit (WxDxH): 30.12 x 11.93 x 21.85
Indoor Unit (WxDxH): 38.23 x 8.98 x 12.64
Electrical: 208/230v/ 1Ph / 60Hz
Sound Level: 30 dBa
Refrigerant: R454B
Warranty: 2-year parts and 1-year compressor (when registered

SPECS:

Model #:EZ-24Z-HP115B / EZ-24W-HP115B
Tonnage: 2 Ton
SEER2: 18.9
Cooling capacity: 24,000
Heating capacity: 25,000
Standard Operating Temp: -13 ~ 122
Outdoor Unit (WxDxH): 35.04 x 13.46 x 26.50
Indoor Unit (WxDxH): 2.60 x 9.21 x 13.27
Electrical: 208/230v/ 1Ph / 60Hz
Sound Level: 26.5 dBa
Refrigerant: R454B
Warranty: 2-year parts and 1-year compressor (when registered

DIYCool Single Zone Platinum Mini Splits

SPECS:

Model #:EZ-12ZPL-HP115B / EZ-12WPL-HP115B
Tonnage: 1 Ton
SEER2: 23.5
Cooling capacity: 12,000
Heating capacity: 12,000
Standard Operating Temp: -13 ~ 122
Outdoor Unit (WxDxH): 30.12 x 11.93 x 21.85
Indoor Unit (WxDxH): 31.57 x 7.44 x 11.69
Electrical: 115v/ 1Ph / 60Hz
Sound Level: 24 dBa
Refrigerant: R454B
Warranty: 2-year parts and 1-year compressor (when registered)

SPECS:

Model #:EZ-18ZPL-HP230B / EZ-18WPL-HP230B
Tonnage: 1.5 Ton
SEER2: 22.5
Cooling capacity: 18,000
Heating capacity: 18,000
Standard Operating Temp: -13 ~ 122
Outdoor Unit (WxDxH): 35.04 x 13.46 x 26.50
Indoor Unit (WxDxH): 42.52 x 8.90 x 13.19
Electrical: 208/230v/ 1Ph / 60Hz
Sound Level: 30.5 dBa
Refrigerant: R454B
Warranty: 2-year parts and 1-year compressor (when registered)

SPECS:

Model #:EZ-24ZPL-HP230B / EZ-24W-HP230B
Tonnage: 2 Ton
SEER2: 22.7
Cooling capacity: 24,000
Heating capacity: 24,000
Standard Operating Temp: -13 ~ 122
Outdoor Unit (WxDxH): 37.24 x 16.14 x 31.89
Indoor Unit (WxDxH): 42.52 x 8.90 x 13.19
Electrical: 208/230v/ 1Ph / 60Hz
Sound Level: 33.5 dBa
Refrigerant: R454B
Warranty: 2-year parts and 1-year compressor (when registered)

SPECS:

Model #:EZ-36ZPL-HP230B / EZ-36W-HP230B
Tonnage: 3 Ton
SEER2: 18
Cooling capacity: 36,000
Heating capacity: 36,000
Standard Operating Temp: -13 ~ 122
Outdoor Unit (WxDxH): 37.24 x 16.14 x 31.89
Indoor Unit (WxDxH): 49.57 x 11.10 x 14.25
Electrical: 208/230v/ 1Ph / 60Hz
Sound Level: 38 dBa
Refrigerant: R454B
Warranty: 2-year parts and 1-year compressor (when registered)

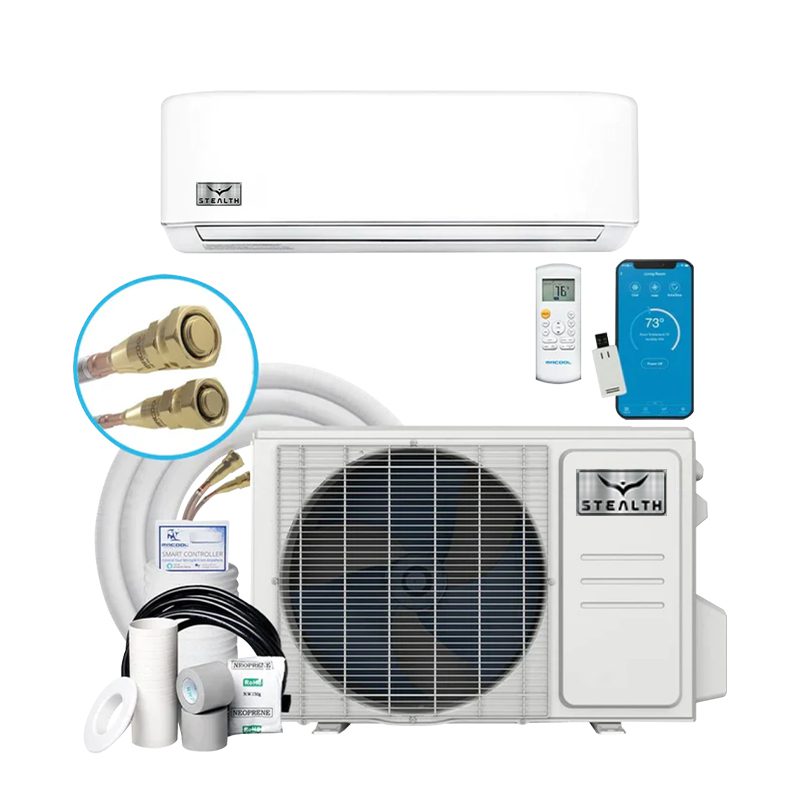

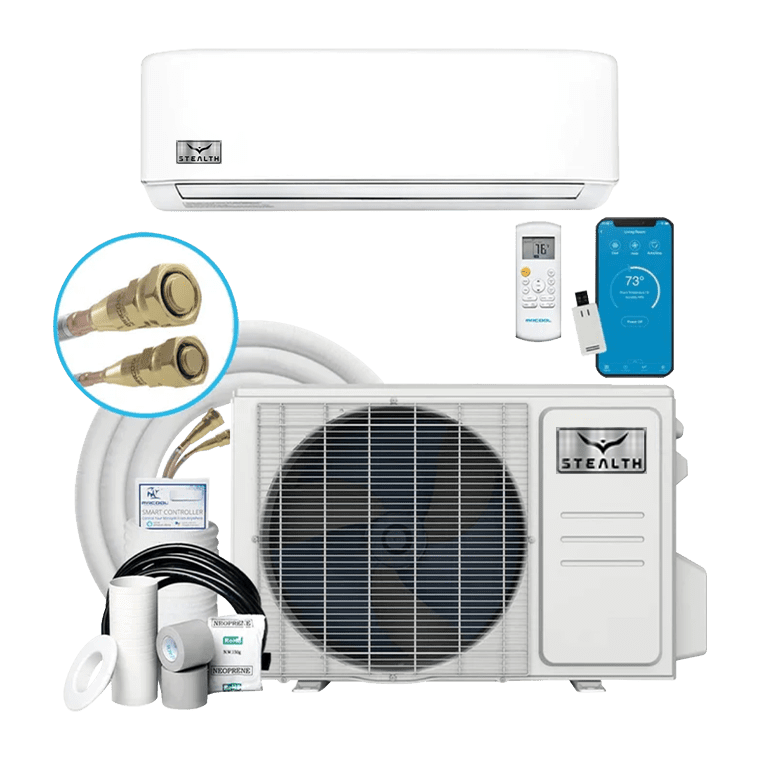

The Stealth DIYCool Single Zone Wall Mount Mini Split delivers powerful comfort in a clean, low-profile design that blends seamlessly into any space. A soft front-facing LED display provides at-a-glance visibility without being distracting, while the included smart remote with LCD screen makes adjusting settings simple and intuitive. With built-in Wi-Fi capability, users can control temperature, modes, and schedules right from a smartphone app. Designed for whisper-quiet operation and multiple comfort modes, this system lets you fine-tune performance to match your space, your schedule, and your comfort preferences—all with the sleek, modern look Stealth is known for.

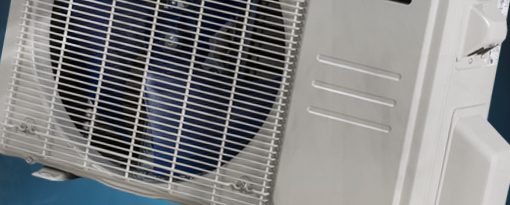

The Stealth DIYCool Single Zone Condenser is built to deliver reliable, efficient performance in a wide range of environments. Its corrosion-resistant construction helps protect the unit from harsh conditions, including coastal climates, extending the life of the system. Designed for dependable year-round operation, it can cool effectively in temperatures as low as 5°F—making it a strong option for specialty spaces like server rooms or greenhouses. Optimized for energy efficiency, the condenser adjusts output based on demand to help reduce operating costs, all while maintaining quiet, unobtrusive operation.
